This is the most common extruded polyamide and offers good mechanical stability and impact resistance. The machining qualities of this grade of nylon are excellent. Available in sheet and rod form.
Typical Applications: Gear Wheels, Rollers, Pulley’s and Sleeves
Colour: Natural, Black
Sheet Sizes: 2000 x 620, 2000 x 1000, 3000 x 1000 mm
(Dependant on thickness)
Supplied as full sheet or cut pieces
Thicknesses Available: 1.5 – 100mm
Diameters Available: 6 – 150 mm
Supplied as 6 – 50mm Ø 3000 mm Lengths 50 – 150mm Ø1000mm Lengths
Precision ground rod available upon request
CAST NYLON 6
Cast Nylon 6 is available for applications where components require a greater wear resistance. Available in sheet and rod form common thicknesses and diameters are available as stock items but specific sizing can be cast to order if required.
Sheet Sizes: 1000 x 1000, 2000 x 1000mm
Colour: Natural
Cast Rod: 50 – 300mm Ø Larger diameters are also available upon request.
Standard Length 1000mm
EXTRUDED NYLON 66
Although similar in make up to Nylon 6 this material is harder and more resistant to wear but has a lower impact resistance. Available in both sheet and rod form.
Typical Applications: Friction Bearings, Conveyor Rollers and Feed Screws
Colour: Natural
Sheet Sizes: 2000 x 620, 2000 x 1000mm, 3000 x 1000mm
(Dependant on thickness)
A range of Nylons containing differing types of Fillers and Lubricants for use in a variety of applications where the self-lubrication and greater wear properties are required. This range includes MOS2 (Molybdenum Sulphide) Filled Glass Filled and Oil Filled. Available in both sheet and rod form.
Sheet Size: 1000 x 1000, 2000 x 1000
Thicknesses: 8 -150mm
Rod Diameters: 20 -200mm Ø Standard Lengths 1000mm
Colour: Black, Yellow, Green, Blue (Dependant on Fillers)
CAST & EXTRUDED NYLON TUBE
Nylon 6 tube is available in both extruded and cast form in a range of dimensions. Please call for further details.
Typical Applications: Gear Wheels, Rollers, Pulley’s and Sleeves
Colour: Natural, Black
Sheet Sizes: 2000 x 620, 2000 x 1000, 3000 x 1000 mm (Dependant on thickness)
Supplied as full sheet or cut pieces
Thicknesses Available: 1.5 – 100mm
Diameters Available: 6 – 150 mm
Supplied as 6 – 50mm Ø 3000 mm Lengths 50 – 150mm Ø1000mm Lengths Precision ground rod available upon request
POLYACETAL (POM-C, POM-H DELRIN)
Polyacetal has a high level of stability and rigidity combining with a low level of moisture absorption. Distinction is made between Homopolymer (POM-H) and Copolymer (POM-C) Copolymer has a greater abrasion resistance and higher impact resistance also better thermal and chemical stability than Homopolymer which has the benefit of a higher density and hardness also greater stability. Available in both rod and sheet form in Natural or Black colour. Machining qualities are excellent and is used in the manufacture of many precision components. Blue Food approved material now available in sheet and rod form. Also available in tube form in a limited range of sizes.
Typical Applications: Sliding Components, Pump and Valve Components
Colour: Natural, Black and Blue
Sheet Sizes: 2000 x 620, 2000 x 1000, 3000 x 1000 mm
(Dependant on thickness)
Supplied as full sheet or cut pieces
Thicknesses Available: 1.5 – 100mm
Diameters Available: 6 – 150 mm
Supplied as 6 – 50mm Ø 3000 mm Lengths, 50 – 150mm Ø1000mm Lengths
POLYETHYLENE (PE)
Polyethylene due to its makeup has a low mechanical strength in comparison to other thermoplastics but has a high toughness and good chemical resistance. This material is available in differing grades based on the molecular weight.
HDPE – PE300
HMWPE – PE500
UHMWPE – PE100
PE300 A low molecular weight material with a low abrasion resistance ideal for welding.
PE500 A higher molecular weight than PE300 which enables it to be used for components in low stress applications which are not subject to high levels of sliding abrasion.
PE1000 With its high molecular weight this material has greater wear properties and has good impact and noise reduction properties. Ideally suited for components that are lightly loaded, due to its excellent sliding properties.
Typical Applications: Food and Meat Industry, Chemical Plant Machinery, Cutting Surfaces (Chopping Boards etc), Chain Guides and Linings
Colour: Natural, Black and Green
Sheet Sizes: 2000 x 1000, 3000 x 1250
Thickness: 3 – 150mm
Supplied as full sheet or cut to size.
Polyethylene Rod also available from 20mm – 200mm Ø Extruded 2Mtr Lengths.
Regenerated material also available, but the physical property values are reduced compared to virgin material
UHMWPE – PE100HDPE – PE300HMWPE – PE500PE1000

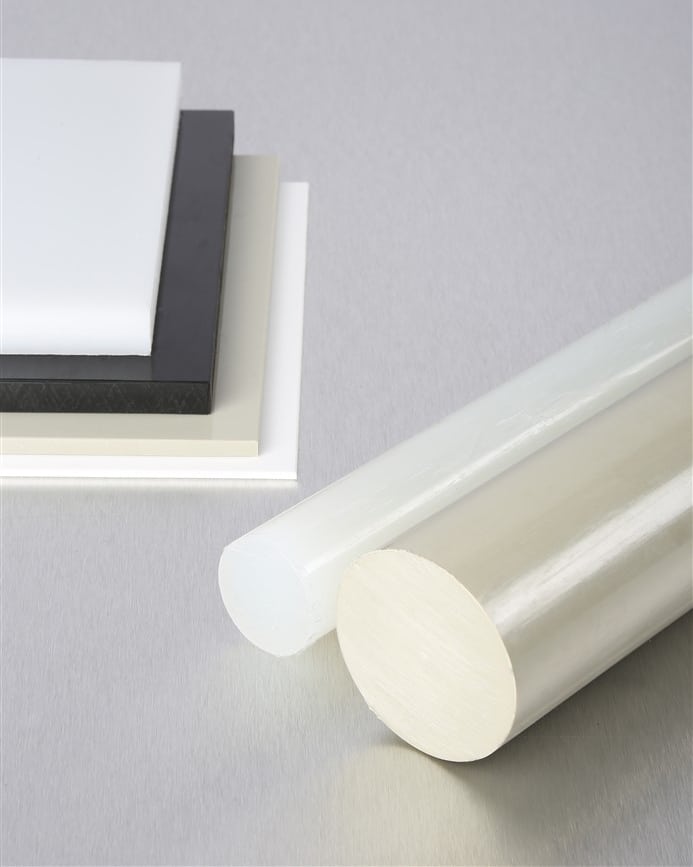

POLYPROPYLENE (PPC)
Copolymer Polypropylene sheet is a, tough hygienic high impact resistant material used predominately within the food industry. From wall cladding in abattoirs to the cladding of refrigeration units as the material will withstand temperatures as low as -30°C. Can be fabricated, to manufacture tanks for drinking water on boats and other applications. Also, in rod form in extruded 2Mtr lengths.
Sheet Sizes: 2440 x 1220, 3000 x 1500
Thicknesses: 2 -15mm larger block available in PPH
Colour: Natural, White, Beige, Black and Blue
PTFE (Polytetrafluoroethylene)
PTFE is a unique material with a combination of thermal, chemical and electrical properties that are unmatched in any other material. With a thermal range of -200°C to + 260°C combined with a low coefficient of friction resulting in a non-stick behaviour. Available in several different forms from sheet to rod and tube, also available with a range of different fillers for specific applications.
Typical applications: include Sealing Rings, Bearings and Valve Seats.
Phenolic Laminates are manufactured by means of impregnating thermosetting resin into layers of either paper, canvas, linen or glass cloth by applying pressure and heat. When this is applied a chemical reaction occurs and transforms the separate layers into a single laminated material that cannot be softened again. With the use of these different materials the finished product can provide a range of mechanical, thermal and electrical properties.
SYNTHETIC RESIN BONDED PAPER (SRBP)
Phenolic Paper Board has excellent electrical strength with good mechanical strength. Used in medium to high voltage applications such as terminal panels, switchgear and bus bar supports.
Sheet Size: 1220 x 1220mm
Colour: Brown/Tan
Thickness Range: 0.8 – 75mm
SYNTHETIC RESIN BONDED FABRIC (SRBF)
Phenolic Fabric Bonded Board has excellent mechanical strength and electrical strength available in various grades dependent on the weave of the fabric used, in the case of very fine weave fabric this can be machined to a high finish such as the manufacture of gears, cams and pulleys.
Sheet Size: 1220 x 1220
Colour: Brown/Tan
Thickness Range: 0.8 x 150mm
Also available in rod and tube form in 1.2Mtr Lengths
